Developed specifically for the nature conservation, quarry & mining industries the Spartan vehicle deliver awesome performance & torque. Unique in its class, the Spartan delivery simplicity, power & remarkable off road performance.
Left & Right hand drive available. We offer unmatched support to fleet owners. On site spare parts, full open online diagnostics, replacement vehicles & immediate support. The Spartan range is only available to commercial entities with large 4×4 fleets, not to individual buyers.

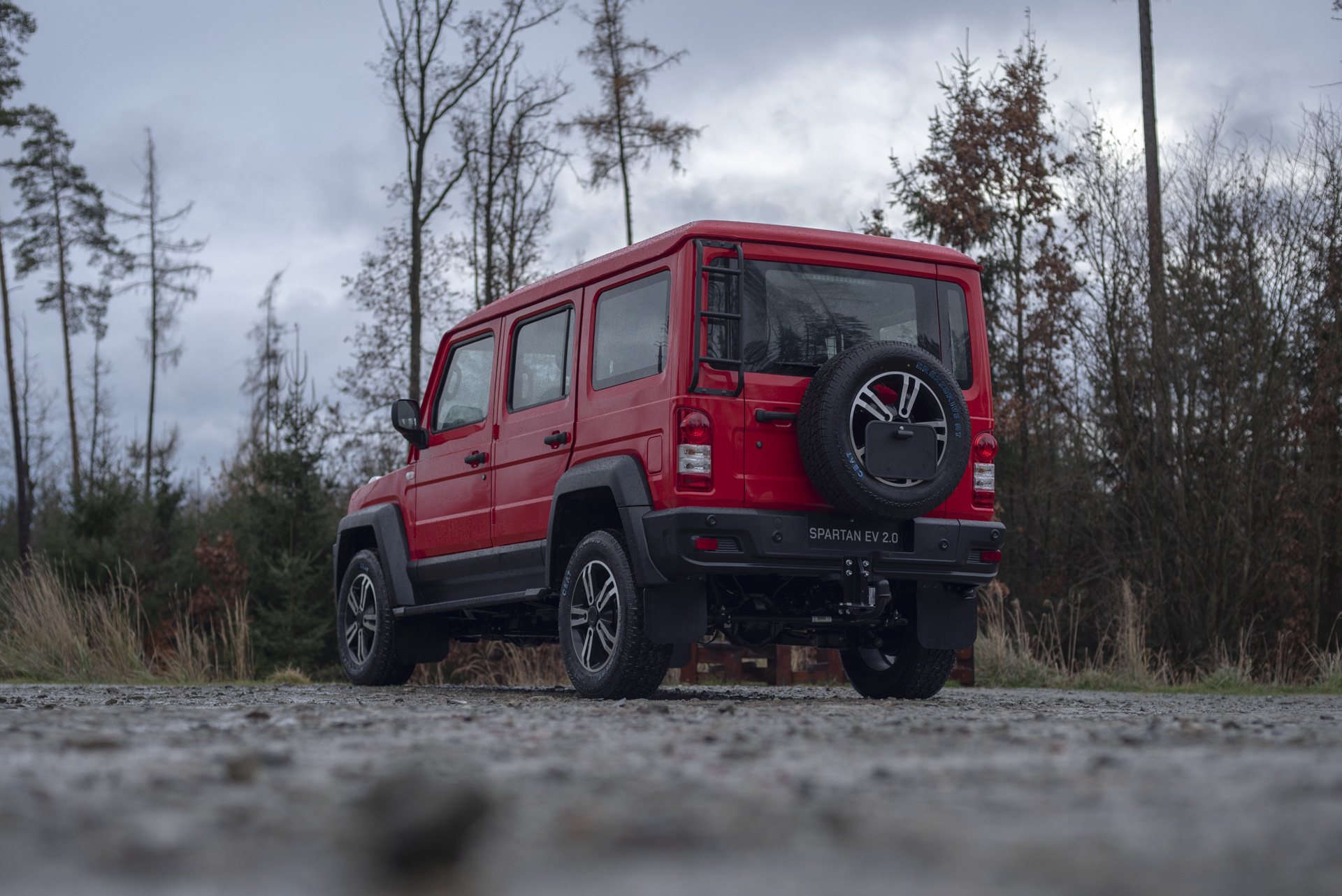

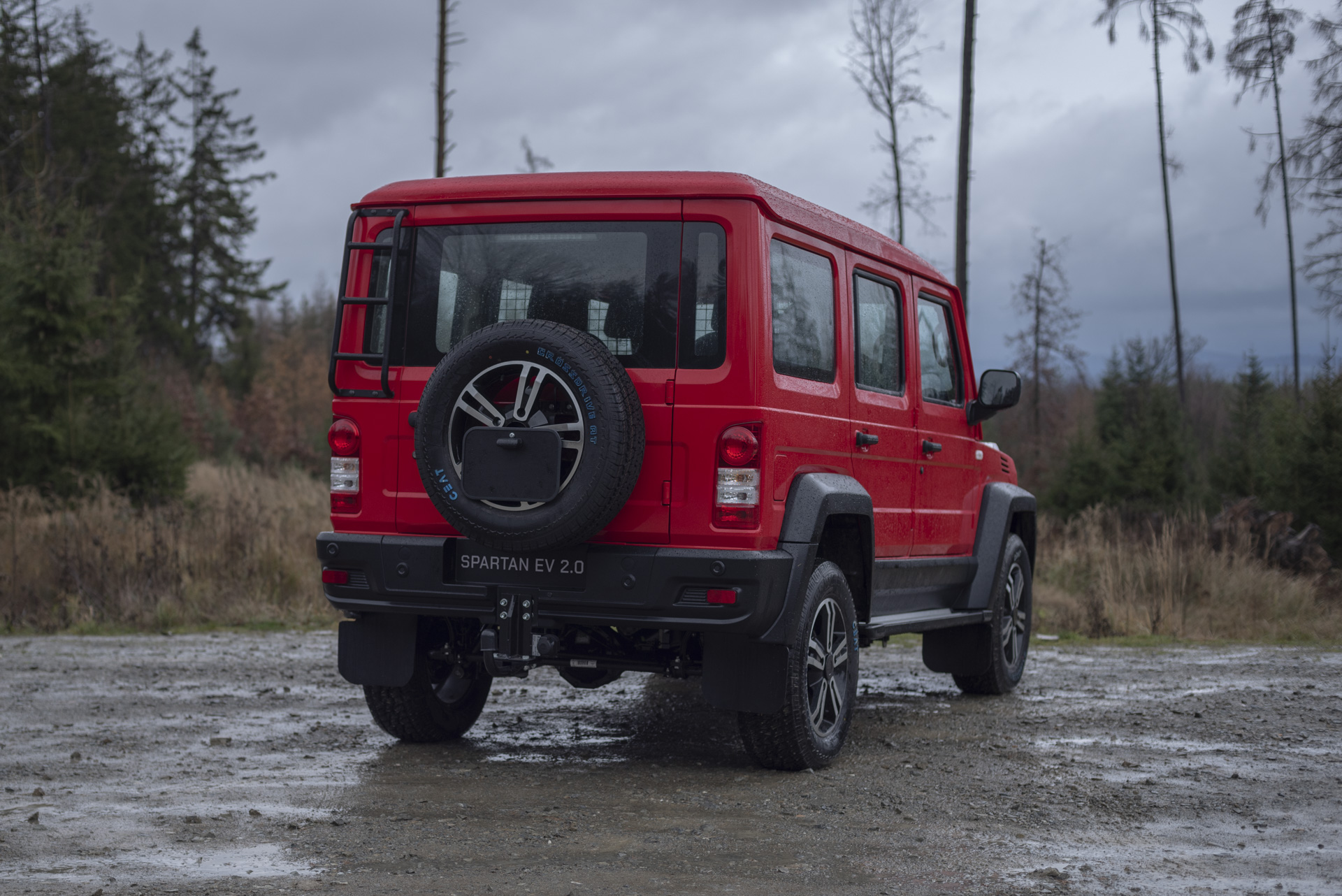

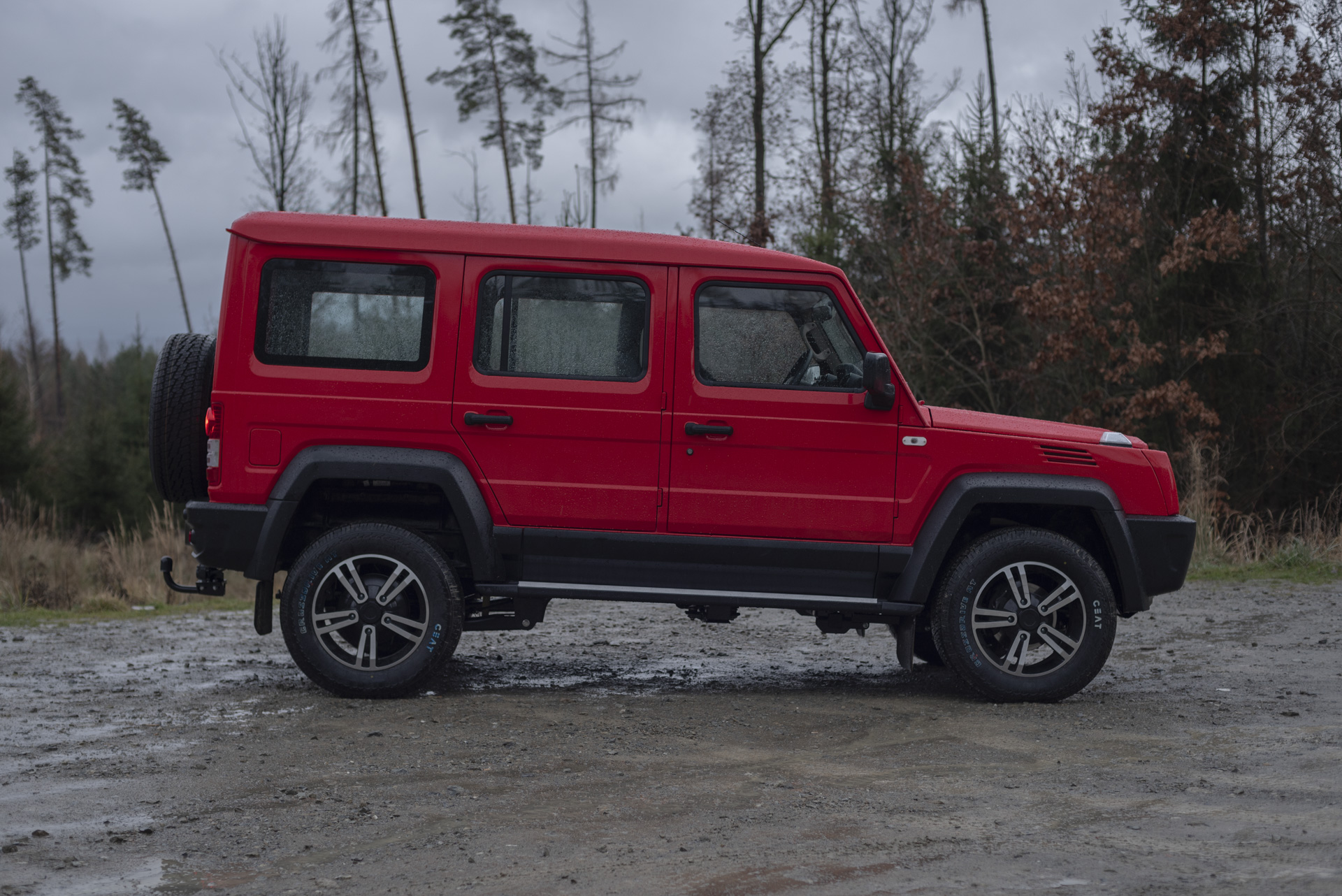

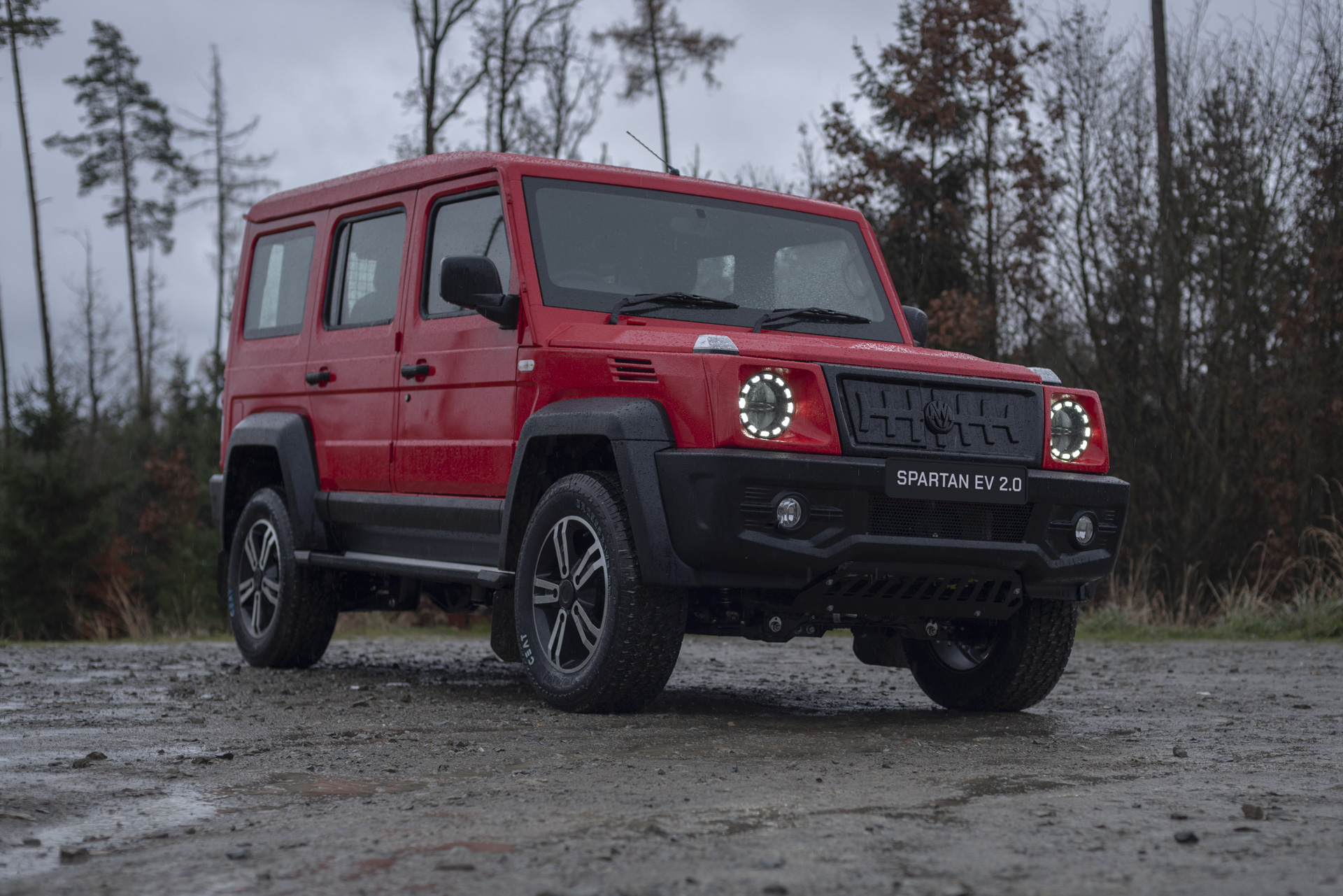

For those looking for a larger solution for transporting more cargo or carrying more passengers, the 5-door LWB variant of the Spartan EV 5 is now available.
130 kW
Motor
61 kWh
Battery
1075 Nm
Max Torque
227 km
Range
2597 l
Cargo capacity
38°/35°
Approach/departure angles
Dimensions:
Wheelbase:
2 825 mm
Length:
4 390 mm
Width:
1 865 mm
Height:
2 095 mm
Ground clearance:
240+ mm
Wading depth:
700+ mm
Curb weight:
2 560 kg
Gross weight:
not specified yet
Load capacity:
850 kg
Cargo space capacity:
2 597 l
Towing capacity:
3 500 kg
Turning radius:
6,3 m
Approach angle:
38°
Departure angle:
35°
Transverse tilt angle:
Can handle 35° on firm ground
Seating capacity:
2, 4, 6
Drive type:
4×4
Wheel drive:
Part-time 4WD
Driveline configuration:
2WD High, 4WD High, 4WD Low
Maximum speed:
175 km/h
Speed limited to:
144 km/h mph
Consumption:
395 W/km
Range:
227 km
ABS, EBD, ASR:
Yes
Front brakes:
Disc
Rear brakes:
Drums
Parking brake:
Mechanical
Power assisted steering:
Yes
Front axle:
Independently suspended with coil springs and stabilizer
Rear axle:
Rigid with coil springs and stabilizer
Airbags:
Front driver and passenger
Tyres:
255/65 R18
Motor:
Type:
Permanent Magnet Synchronous Motor
Maximum power:
130 kW
Maximum torque:
1 075 Nm
Peak efficiency:
96 %
Cooling:
Water cooled (shared with the MCU)
Battery:
Battery case:
1
Batteries:
27 × 3P4S (399,6 V/153 Ah)
Type:
3,7 V 51 Ah Lithium-ion
Working voltage:
399 V
Maximum capacity:
61,1 kWh
Usable capacity:
57,4 kWh
Battery thermal management:
12 V - 1,62 kW
12 V battery:
40 Ah
Charging:
AC charging:
On-board charger 3-phases 11 kW, 1-phase 6 kW
Rapid DC - CCS2:
Peak 90 kW
20-80% charge:
36 minutes
V2L (vehicle-to-load):
230 V, 13 A max, 1-phase 3 kW
Charger cooling:
Water cooled
Dimensions:
Wheelbase:
2 825 mm
Length:
4 390 mm
Width:
1 865 mm
Height:
2 095 mm
Ground clearance:
240+ mm
Wading depth:
700+ mm
Curb weight:
2 560 kg
Gross weight:
not specified yet
Load capacity:
850 kg
Cargo space capacity:2
2 597 l
Towing capacity:
3 500 kg
Turning radius:
6,3 m
Approach angle:
38°
Departure angle:
35°
Transverse tilt angle:
Can handle 35° on firm ground
Seating capacity:
2, 4, 6
Drive type:
4×4
Wheel drive:
Part-time 4WD
Driveline configuration:
2WD High, 4WD High, 4WD Low
Maximum speed:
175 km/h
Speed limited to:
144 km/h
Consumption:
395 W/km
Range:
227 km
ABS, EBD, ASR:
Yes
Front brakes:
Disc
Rear brakes:
Drums
Parking brake:
Mechanical
Power assisted steering:
Yes
Front axle:
Independently suspended with coil springs and stabilizer
