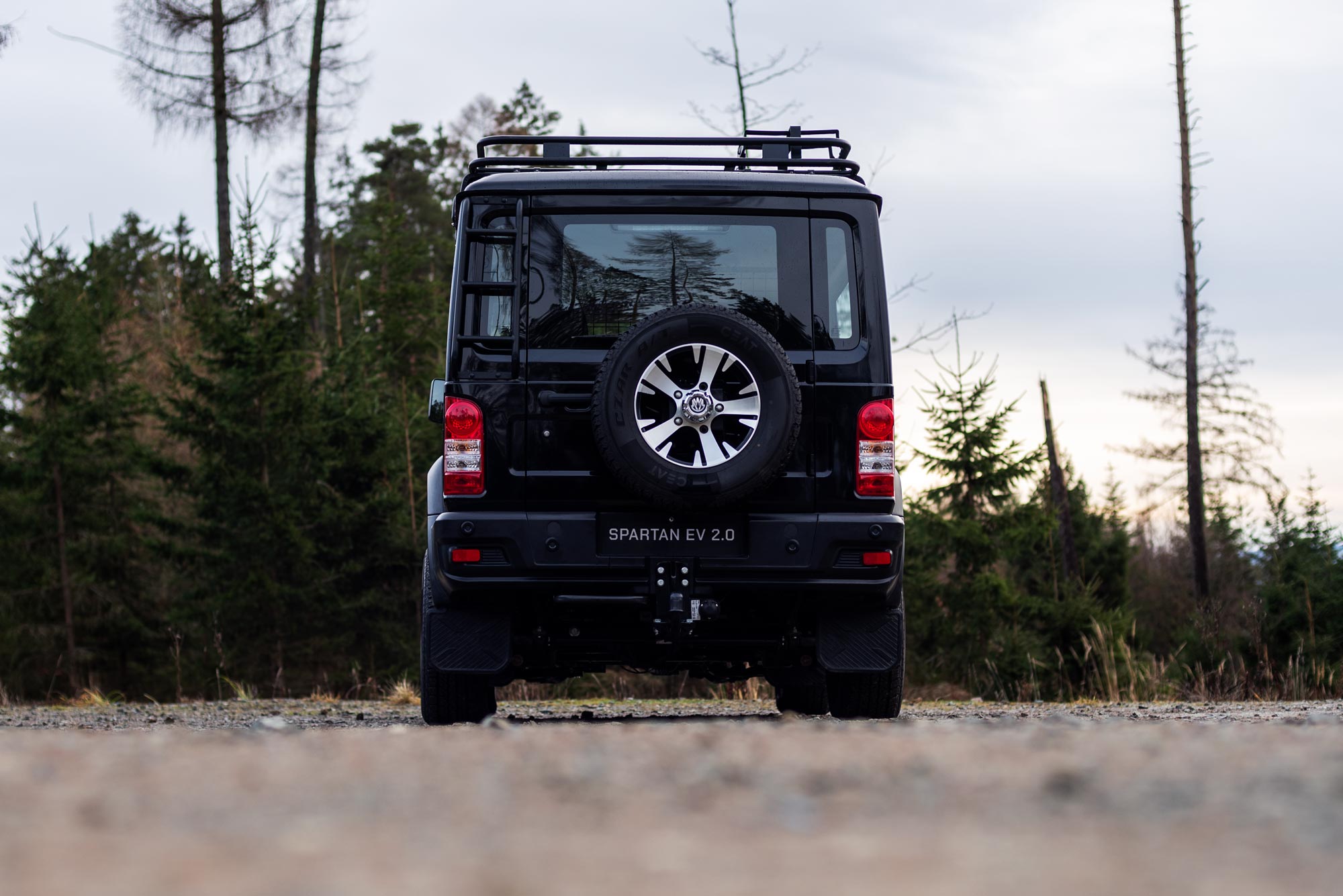

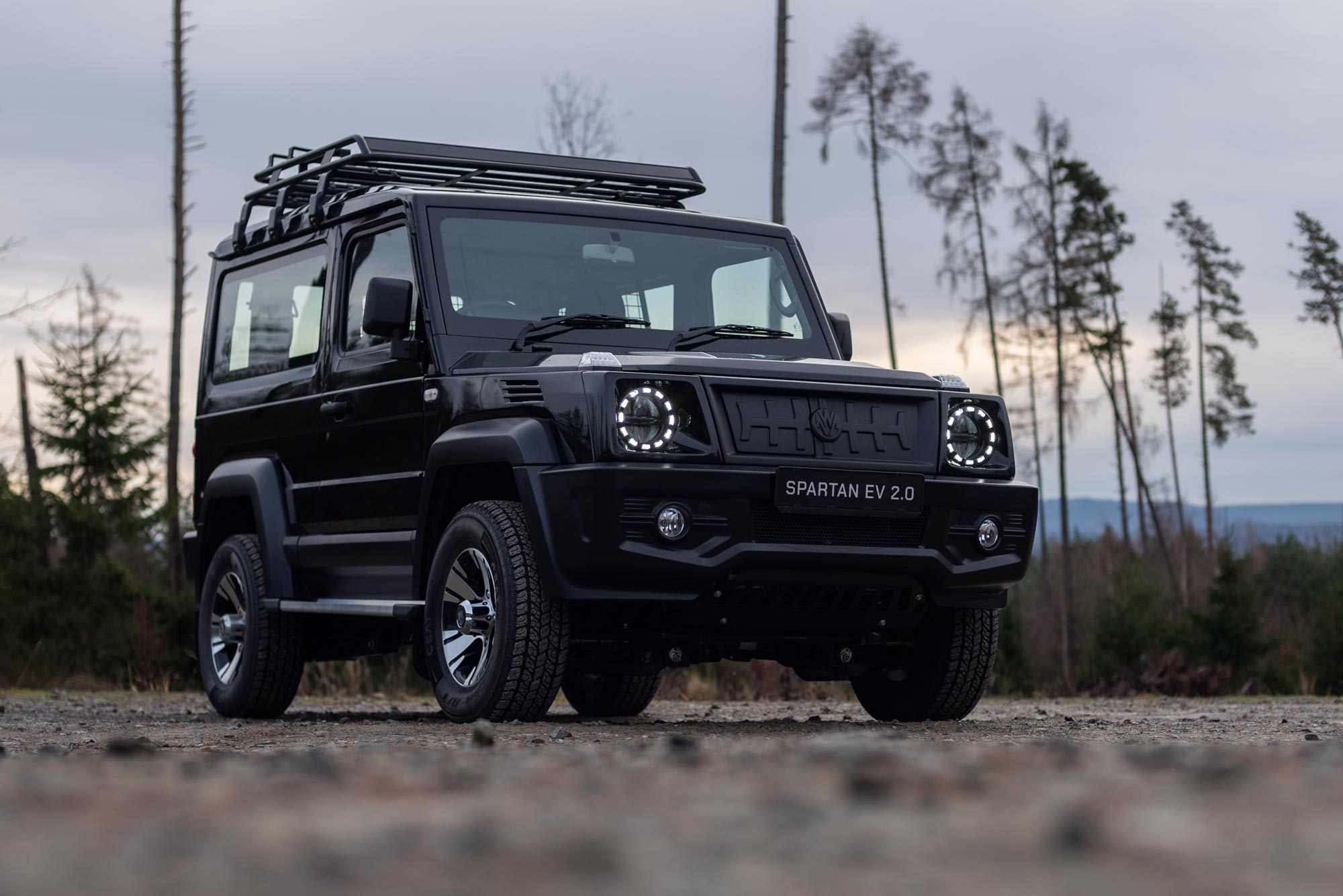

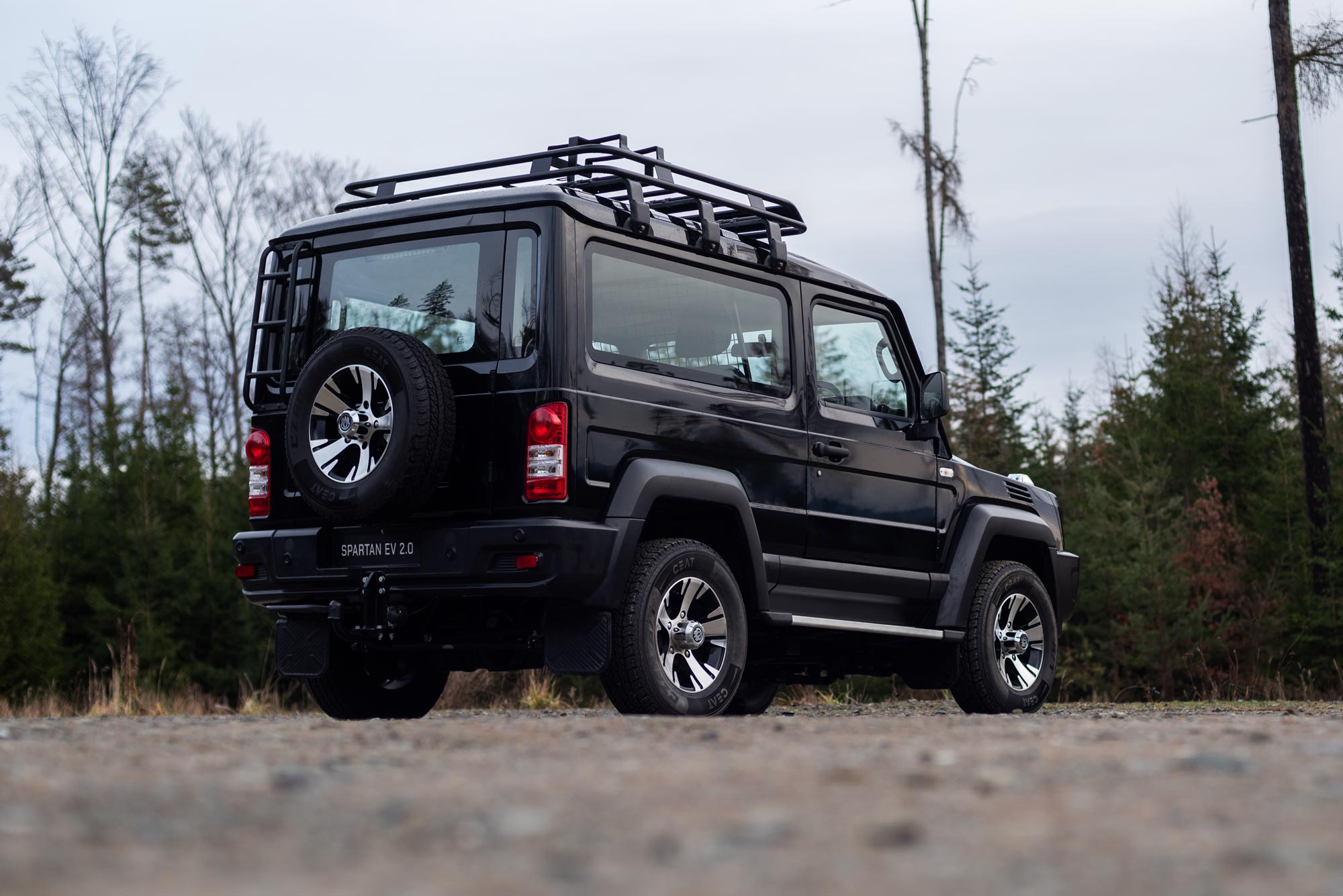

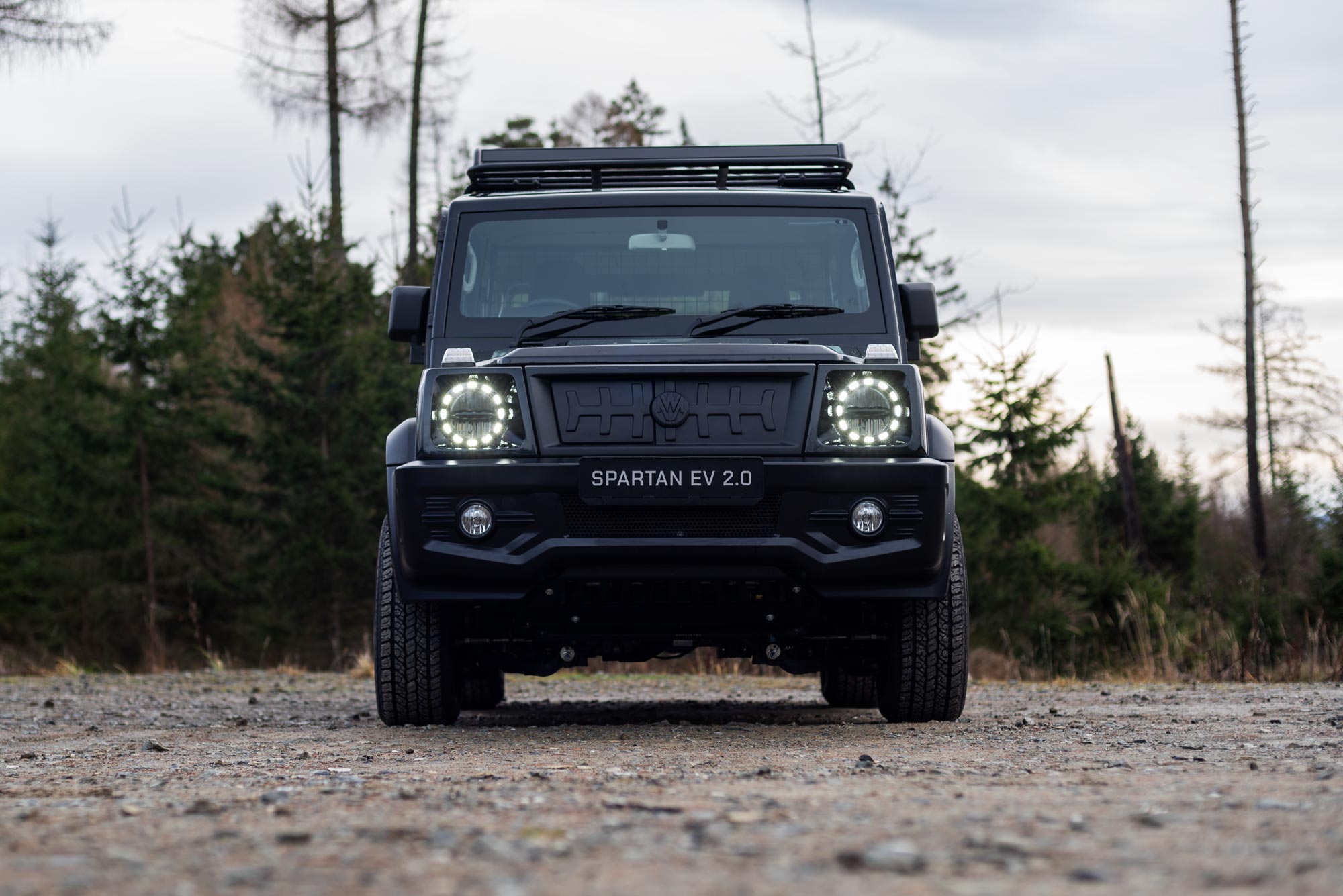

Spartan EV 3
Developed specifically for the nature conservation, quarry & mining industries the Spartan vehicle deliver awesome performance & torque. Unique in its class, the Spartan delivery simplicity, power & remarkable off road performance.
| Wheelbase: | 2 400 mm | Length: | 3 965 mm |
| Width: | 1 865 mm | Height: | 2 080 mm |
| Ground clearance: | 240+ mm | Wading depth: | 700+ mm |
| Curb weight: | 2 350 kg | Gross weight: | 3 375 kg |
| Load capacity: | 1 025 kg | Cargo space capacity: | 1 718 l |
| Towing capacity: | 3 000 kg | Turning radius: | 5,65 m |
| Approach angle: | 38° | Departure angle: | 35° |
| Transverse tilt angle: | Can handle 35° on firm ground | Seating capacity: | 2, 4 |
| Drive type: | 4×4 | Wheel drive: | Part-time 4WD |
| Driveline configuration: | 2WD High, 4WD High, 4WD Low | Maximum speed: | 175 km/h |
| Speed limited to: | 144 km/h mph | Consumption: | 395 W/km |
| Range: | 240 km | ABS, EBD, ASR: | Yes |
| Front brakes: | Disc | Rear brakes: | Drums |
| Parking brake: | Mechanical | Power assisted steering: | Yes |
| Front axle: | Independently suspended with coil springs and stabilizer | Rear axle: | Rigid with coil springs and stabilizer |
| Airbags: | Front driver and passenger | Tyres: | 255/65 R18 |
| Type: | Permanent Magnet Synchronous Motor | Maximum power: | 130 kW |
| Maximum torque: | 1 075 Nm | Peak efficiency: | 96 % |
| Cooling: | Water cooled (shared with the MCU) |
| Battery case: | 1 | Batteries: | 27 × 3P4S (399,6 V/153 Ah) |
| Type: | 3,7 V 51 Ah Lithium-ion | Working voltage: | 399 V |
| Maximum capacity: | 61,1 kWh | Usable capacity: | 57,4 kWh |
| Battery thermal management: | 12 V - 1,62 kW | 12 V battery: | 40 Ah |
| AC charging: | On-board charger 3-phases 11 kW, 1-phase 6 kW | Rapid DC - CCS2: | Peak 90 kW |
| 20-80% charge: | 36 minutes | V2L (vehicle-to-load): | 230 V, 13 A max, 1-phase 3 kW |
| Charger cooling: | Water cooled |
| Wheelbase: | 2 400 mm |
| Length: | 3 965 mm |
| Width: | 1 865 mm |
| Height: | 2 080 mm |
| Ground clearance: | 240+ mm |
| Wading depth: | 700+ mm |
| Curb weight: | 2 350 kg |
| Gross weight: | 3 375 kg |
| Load capacity: | 1 025 kg |
| Cargo space capacity:2 | 1 718 l |
| Towing capacity: | 3 000 kg |
| Turning radius: | 5,65 m |
| Approach angle: | 38° |
| Departure angle: | 35° |
| Transverse tilt angle: | Can handle 35° on firm ground |
| Seating capacity: | 2, 4 |
| Drive type: | 4×4 |
| Wheel drive: | Part-time 4WD |
| Driveline configuration: | 2WD High, 4WD High, 4WD Low |
| Maximum speed: | 175 km/h |
| Speed limited to: | 144 km/h |
| Consumption: | 395 W/km |
| Range: | 240 km |
| ABS, EBD, ASR: | Yes |
| Front brakes: | Disc |
| Rear brakes: | Drums |
| Parking brake: | Mechanical |
| Power assisted steering: | Yes |
| Front axle: | Independently suspended with coil springs and stabilizer |
| Rear axle: | Rigid with coil springs and stabilizer |
| Airbags: | Front driver and passenger |
| Tyres: | 255/65 R18 |
| Type: | Permanent Magnet Synchronous Motor |
| Maximum power: | 130 kW |
| Maximum torque: | 1 075 Nm |
| Peak efficiency: | 96 % |
| Cooling: | Water cooled (shared with the MCU) |
| Battery case: | 1 |
| Batteries: | 27 × 3P4S (399,6 V/153 Ah) |
| Type: | 3,7 V 51 Ah Lithium-ion |
| Working voltage: | 399 V |
| Maximum capacity: | 61,1 kWh |
| Usable capacity: | 57,4 kWh |
| Battery thermal management: | 12 V - 1,62 kW |
| 12 V battery: | 40 Ah |
| AC charging: | On-board charger 3-phases 11 kW, 1-phase 6 kW |
| Rapid DC - CCS2: | Peak 90 kW |
| 20-80% charge: | 36 minutes |
| V2L (vehicle-to-load): | 230 V, 13 A max, 1-phase 3 kW |
| Charger cooling: | Water cooled |
